Have you ever pressed the gas pedal and felt that thrilling surge of acceleration? If your car is equipped with a turbocharged engine, this instant burst of power is truly unforgettable. But do you know how this impressive performance is achieved? Why can a turbocharged engine deliver far more power than a naturally aspirated one with the same displacement?
Today, we’ll break down how turbochargers work, their core components, key advantages and essential maintenance tips, helping you fully understand this game-changing automotive technology.
What Is a Turbocharger? Recycle Waste Energy for Extra Power
In a standard naturally aspirated engine, a large amount of high-temperature and high-pressure exhaust gas is discharged directly after fuel combustion. The massive energy carried by exhaust gas goes to waste.
A turbocharger acts like an energy recycler. It repurposes otherwise wasted exhaust energy to compress ambient air and force more air into the engine cylinders. With more air inside, the engine can burn more fuel efficiently, generating greater horsepower and torque. That’s why the turbocharger is widely regarded as an effective performance booster for modern engines.

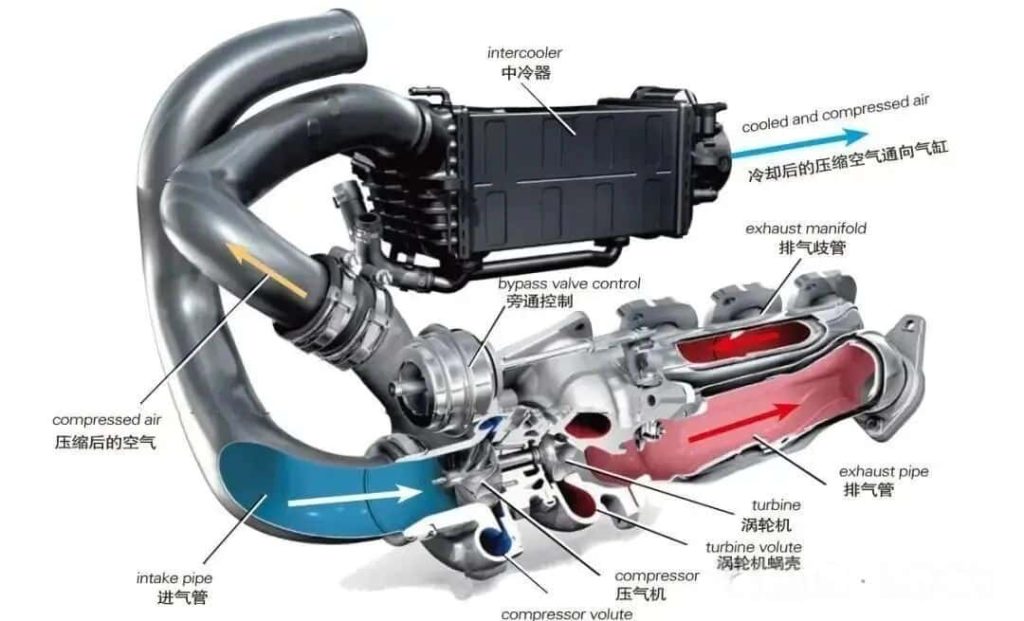

Core Structure of a Turbocharger
Despite its compact size, a turbocharger operates with three key cooperating components:
- Turbine Wheel: Connected to the exhaust manifold. It spins rapidly driven by exhaust gas flow.
- Compressor Wheel: Linked to the engine intake pipe. It draws in and compresses outside air.
- Center Housing & Bearing System: A solid central shaft connects the turbine wheel and compressor wheel. Supported by professional bearings, it ensures the two wheels rotate synchronously at extreme speeds.
Simply put, the turbine and compressor work like two windmills mounted back to back. The exhaust spins one windmill, which drives the other to compress air for the engine.
Step-by-Step Working Principle of Turbochargers
The entire working process is straightforward and efficient, just like blowing up a balloon by compressing air:
1. Exhaust Gas Drives the Turbine
When the engine runs, hot high-pressure exhaust rushes out from the exhaust manifold and hits the turbine blades. This strong airflow spins the turbine continuously, just like wind turning a pinwheel.
2. Turbine Powers the Compressor
Since the turbine and compressor share one shaft, the spinning turbine drives the compressor wheel at the exact same speed. Modern turbochargers can reach an incredible 200,000 RPM — over 10 times faster than most high-performance car engines.
3. Compress Air to Increase Oxygen Density
The fast-spinning compressor sucks in outside air and compresses it. Compressed air has a much higher density, meaning more oxygen molecules are packed into the same volume. More oxygen creates better conditions for full fuel combustion.
4. Intercooler Cools Down Hot Compressed Air
Air temperature rises sharply during compression. Hot air is less dense and hinders combustion efficiency. To solve this, an intercooler, a small auxiliary radiator, is installed in most turbo systems. It cools the compressed air down effectively and further optimizes air density.
5. More Oxygen = Stronger Engine Power
The cooled, dense air flows into engine cylinders, mixes fully with fuel and ignites. The sufficient oxygen enables complete combustion, producing stronger thrust to push pistons and deliver outstanding power output.
A Simple Analogy
Think about lighting a pile of paper scraps with a lighter. Blow gently towards the flame, and the fire will burn much brighter. A turbocharger works in the same way: it supplies extra oxygen to make fuel burn more thoroughly.
On average, a turbocharged engine can boost power output by 30% to 50% compared with a naturally aspirated engine of the same displacement. It brings drivers a responsive and dynamic driving experience.
Smart Control Systems: Avoid Over-Boost & Turbo Lag
Higher boost pressure does not always mean better performance. Excessive pressure will damage engine parts. Modern turbochargers are fitted with two precision control parts for stable and reliable operation:
1. Wastegate (Pressure Relief Valve)
The wastegate serves as a safety valve for the turbo system. When boost pressure hits the preset limit, it opens automatically to divert part of the exhaust gas away from the turbine. This limits turbine speed and keeps boost pressure within a safe range, just like turning down a tap to avoid splashing water.
2. Bypass Valve (Reduce Turbo Lag)
Turbo lag is a common issue for turbo engines. When you release the gas pedal while driving fast, the throttle closes, but the turbo keeps spinning due to inertia. Trapped compressed air creates back pressure and abruptly slows the turbo down.
The bypass valve fixes this problem. It opens to let compressed air circulate back to the turbo inlet, releasing excess pressure. The turbo maintains a steady high speed, so you get instant power response the next time you hit the gas. It works similarly to a bicycle freewheel, which keeps the wheel spinning even when you stop pedaling.
Key Advantages of Turbocharged Engines
Turbo technology brings far more benefits than just improved power:
1. Better Fuel Efficiency
Small-displacement turbo engines deliver power comparable to large-displacement naturally aspirated engines when accelerating or climbing slopes. During steady cruising under light load, they maintain the low fuel consumption of small engines. For example, many 2.0T engines now match or even outperform traditional 3.0L naturally aspirated engines while using much less fuel.
2. Lower Exhaust Emissions
Full fuel combustion cuts down unburned hydrocarbons and harmful exhaust. This is why turbochargers have become a popular choice for automakers to meet strict global emission standards.
3. Stable Performance at High Altitudes
Air gets thinner at high altitudes, which severely weakens the power of naturally aspirated engines. Turbochargers can adjust boost pressure to compensate for thin air, keeping consistent power output on mountain roads or highland areas.
Essential Turbocharger Maintenance Tips
A turbocharger is a high-precision component running at extreme speeds. Proper maintenance can greatly extend its service life:
1. Do Not Turn Off the Engine Immediately After Heavy Use
If you have just driven at high speed or climbed steep hills, let the engine idle for 1 to 2 minutes before shutting it off. This allows the turbo to cool gradually with continuous oil lubrication and prevents engine oil from coking on hot bearings.
2. Use High-Quality Engine Oil and Replace It Regularly
Turbo bearings rely heavily on lubrication. Always use manufacturer-recommended premium engine oil and follow the scheduled oil change cycle. Oils specially formulated for turbo engines are clearly marked on product packaging.
3. Avoid Aggressive Driving When the Engine Is Cold
Right after startup, engine components are still at low temperature, and oil has not fully circulated to all lubrication points. Hard acceleration forces the turbo to spin rapidly and causes premature bearing wear. Wait until the engine warms up for a better and safer driving experience.
Final Conclusion
A turbocharger is a brilliant energy amplifier for car engines. It reuses wasted exhaust energy to feed more oxygen into cylinders, achieving full combustion and stronger power.
This ingenious design complies with the law of energy conservation. It does not create power out of nowhere, but maximizes energy utilization. Thanks to turbo technology, modern cars can perfectly combine small displacement, strong power and low fuel consumption, becoming an indispensable part of today’s automotive industry.
