It’s tricky to judge an oil filter’s quality merely by its exterior look. To help truck owners get clear insights into internal construction of premium filter products, we fully disassemble and analyze the well-known Fleetguard LF16329 oil filter today.

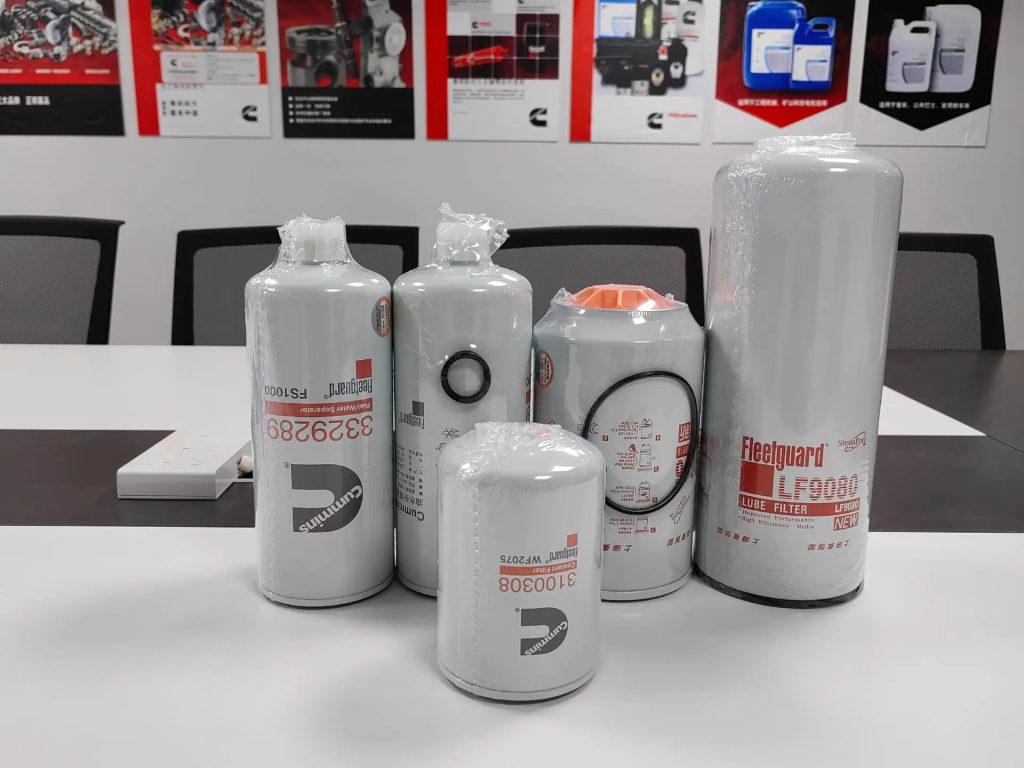

Founded in 1994, Fleetguard is a joint venture invested by Dongfeng Auto Parts Group and Cummins. Apart from automotive spare parts, its product lineup also covers engineering machinery, marine equipment and railway applications, earning solid reputation among vehicle users.
Basic Exterior & Compatibility

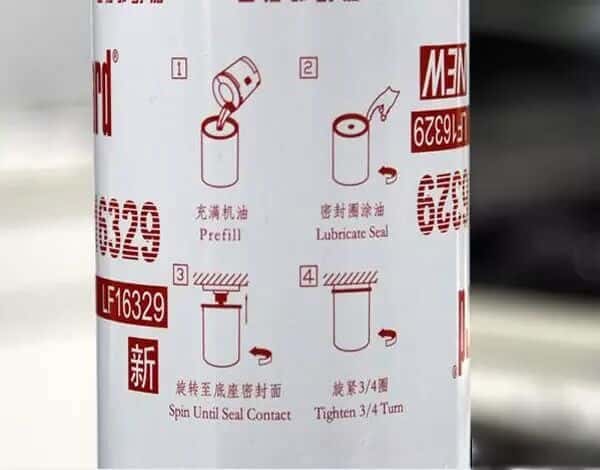

The LF16329 composite oil filter adopts a white tank body paired with striking red brand logos, creating high visual recognition. Dual-sided printed markings on the shell allow users to read specification data conveniently no matter the installation angle.
This filter boasts wide compatibility. It can replace JX1023 series filters fitted for Yuchai YC6108, YC4108 and YC6105 turbo engines. It also serves as an upgraded substitute for Mann W11102-27 filters matched with Jiefang 6DM and 6DN engines. Vertical mounting design fits diverse engine assembly demands perfectly. Anti-counterfeit labels and production codes on the top shell help users identify genuine products easily.
Physical Structure & Material Quality

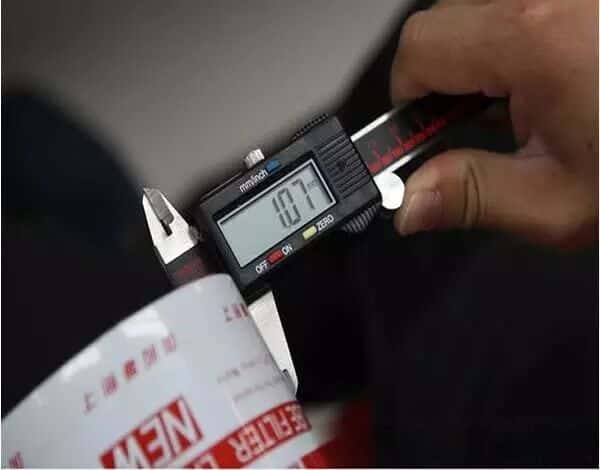

The whole filter weighs 1.36KG. After professional cutting inspection, the average shell thickness exceeds 1.0mm, featuring thick steel casing with sturdy manufacturing craft.

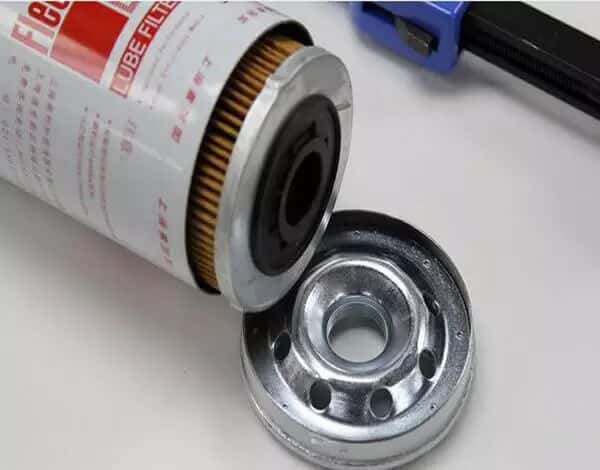

Standard oil filters consist of outer shell, filter cartridge, bypass valve and check valve. No check valve is installed inside this vertical-mounted model, which conforms to practical structural design rules.
Heavy-duty casting parts on the top and thick shell account for 65% of total weight. Solid material usage lays a firm foundation for durable operation under harsh working conditions.

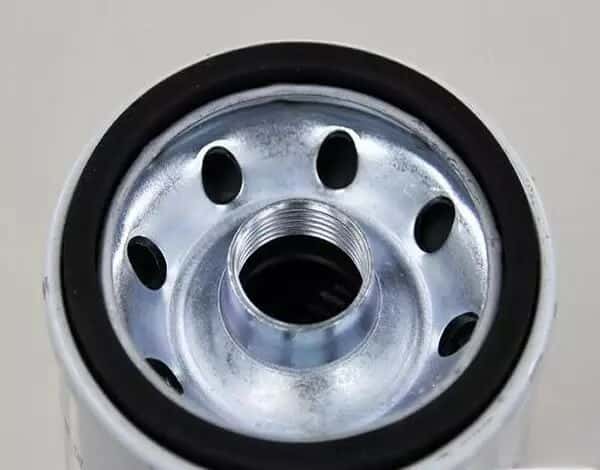

Built-in robust spring firmly holds the filter cartridge in place. Thick rubber sealing gaskets isolate oil inlet and outlet channels effectively, resisting deformation under high temperature and high pressure working environment.
The top-mounted bypass valve acts as critical protection component. Once filter clogging increases oil flow resistance, the valve opens automatically to maintain normal oil circulation and protect engine components from damage.
Filter Cartridge Deep Inspection
Extra thick sealing adhesive tightly bonds filter paper with upper and lower end caps. It effectively prevents unfiltered oil from bypassing the filter medium and flowing back to the engine directly.
The inner oil outlet tube is made of premium stainless steel. Spiral hollow strip winding structure ensures tight splicing and stable sealing performance, guaranteeing all lubricant flows through filter paper completely.
After removing sealed components, we measured the unfolded filter paper. The total length reaches 3.66 meters with 0.21 meters in width, forming a total filtering area of 0.77 square meters.
Made of synthetic fiber material, the filter paper delivers outstanding filtration performance. Official data shows its impurity capturing capacity is 3 times stronger than conventional filter media. No light penetration can be observed under sunlight test. Besides, the fiber maintains stable hardness and strength after long-time water soaking, avoiding softening and structural failure.
Final Verdict
Comprehensive performance evaluation of oil filters involves extreme pressure resistance, flow rate, valve opening pressure and high temperature aging resistance. Nevertheless, fine workmanship and reliable sealing structure are fundamental prerequisites for qualified filters.
From overall material selection, shell thickness, sealing design to filter paper quality, Fleetguard LF16329 shows superior manufacturing standards and reliable internal construction. It is a trustworthy aftermarket oil filter option for heavy-duty truck and commercial engine maintenance.
