During engine overhaul and maintenance, proper piston ring installation is critical. Incorrect fitting, reversed orientation or damaged piston rings will directly lead to excessive oil consumption, blue smoke emission and high crankcase blow-by. Below is the professional standard installation procedure for Cummins engine piston rings.
1. Distinguish Piston Ring Orientation & Classification

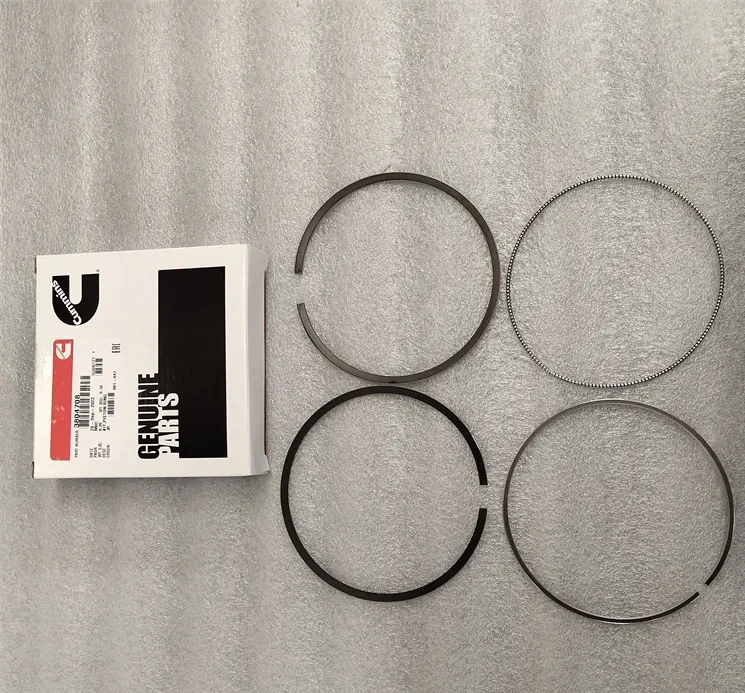

Most Cummins engines are fitted with 3 or 4 piston rings.
Marked with the word TOP on the ring surface, this side must face upward toward the piston crown.
Differentiate each ring position clearly: The top compression ring is a chrome-plated ring, which is thicker and lighter in color compared to the second and third rings.
2. Standard Installation Steps for Piston Rings

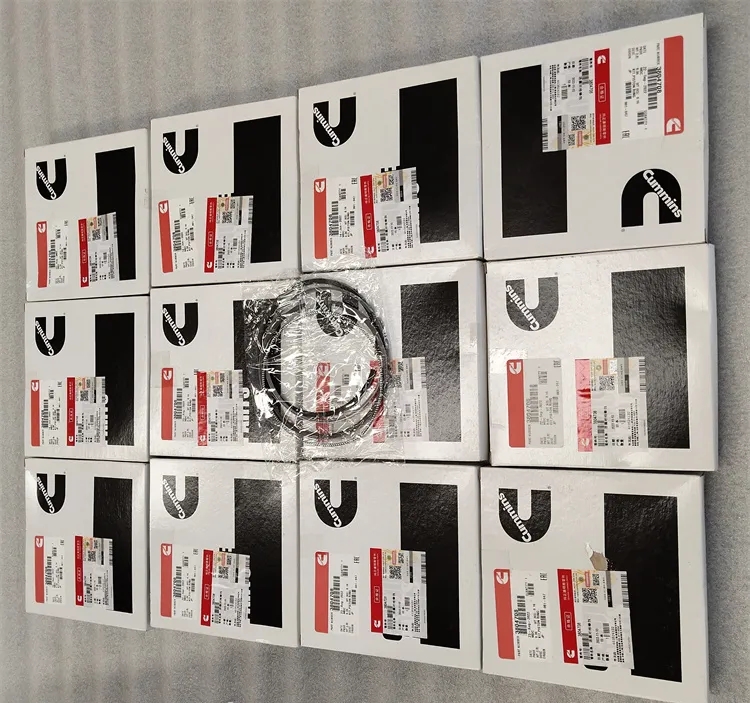

Always adopt genuine Cummins original piston rings to ensure stable hardness, wear resistance and sealing performance.
- The first ring is chrome-plated top compression ring; the second and third rings are taper rings or twist rings without chrome coating. Align the TOP marking toward the piston top strictly.
- After placing rings into grooves, rotate them gently to ensure flexible movement without jamming.
- Use a professional piston ring installer during assembly. Do not overstretch the ring gap to avoid permanent deformation or fracture.
- Stagger all ring openings reasonably: keep away from piston pin holes and vertical pin hole directions. The staggered angle between each ring gap shall be kept at 90° to 120°.

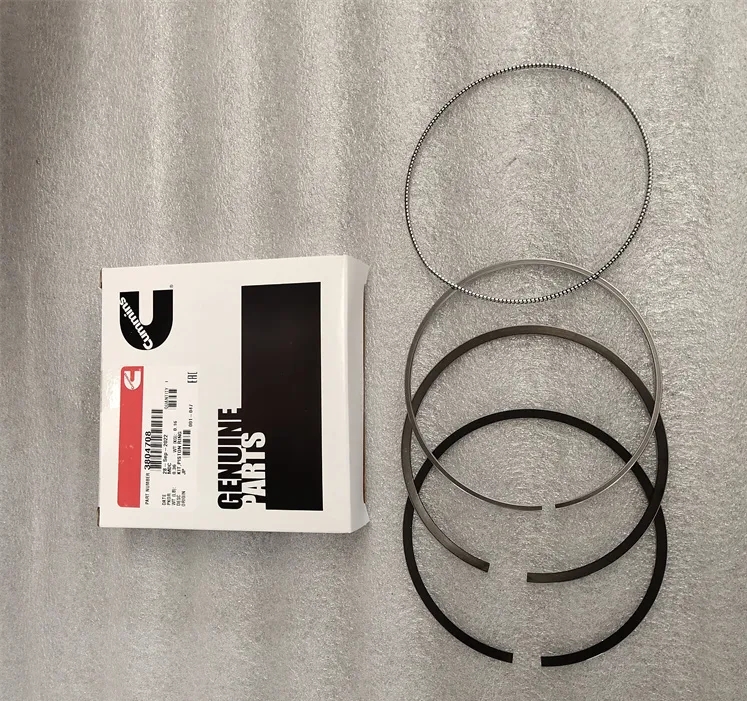

- For the 4th combined oil ring with coil expander: first install the coil expander into the bottom ring groove and connect the joint firmly, then fit the oil ring main body. Make sure the oil ring gap is set opposite to the expander joint position.
3. Precautions for Putting Piston & Connecting Rod into Cylinder Liner
- Apply a proper amount of engine oil on the dedicated Cummins piston compressor before use.
- Clamp the piston assembly softly and steadily with the tool. Excessive force will easily crack or break the installed piston rings.
Core Key Reminder
Stagger all piston ring gaps strictly according to regulations. Wrong gap arrangement is the main cause of engine oil burning, poor compression and reduced engine service life.
