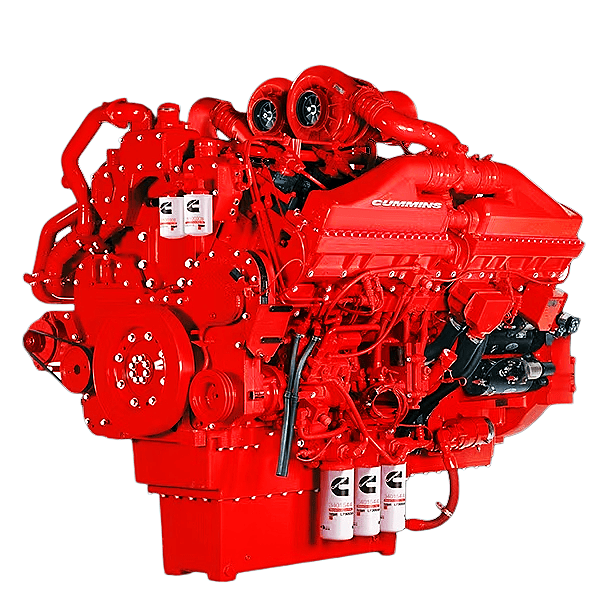

Abnormal fuel return of the Cummins QSK38 engine usually presents a variety of observable fault phenomena, and its root causes are mostly related to oil circuit blockage, fuel injection system misalignment, sensor failure or electronic control unit (ECM) abnormalities. Based on the engine technical principles, the following systematically sorts out the fault phenomena, causes and targeted solutions to help maintenance personnel efficiently troubleshoot and accurately solve problems.
🔧 I. Typical Fault Phenomena and Causes of Abnormal Fuel Return
1. Difficult or Failed Engine Startup
Phenomenon: No smoke or only a small amount of white smoke is emitted from the exhaust pipe during startup, and the engine fails to start successfully after multiple attempts.
Core Cause: Blockage of the fuel return line leads to poor fuel circulation, or poor atomization of the fuel injector affects fuel combustion efficiency, failing to meet the combustion conditions required for startup.
2. Power Loss and Weak Acceleration
Phenomenon: The engine has obvious insufficient power during high-load operation, and the throttle response is sluggish after stepping on the accelerator pedal, making it impossible to achieve rapid acceleration.
Core Cause: Failure of the fuel pressure regulator or blockage of the fuel injector nozzle leads to insufficient fuel supply, lean mixture (air-fuel ratio imbalance), and reduced combustion work efficiency.
3. Abnormal Exhaust Smoke (Black/White Smoke)
Phenomenon: During engine operation, the exhaust pipe continuously emits black smoke (indicating incomplete fuel combustion) or white smoke (indicating evaporation of unburned fuel).
Core Cause: Fuel injector leakage, excessive fuel return, or oxygen sensor failure leads to incorrect ECM fuel injection correction signals, resulting in mismatch between fuel supply and combustion demand.
4. Abnormally Increased Fuel Consumption
Phenomenon: Fuel consumption is significantly higher than normal working conditions, the engine’s cruising range is greatly shortened, and fuel economy is severely reduced.
Core Cause: The fuel return valve fails to close tightly or the oil pressure regulator malfunctions, causing part of the unburned fuel to flow back directly, resulting in fuel waste.
5. High Oil Temperature and Increased Noise
Phenomenon: The instrument shows that the oil temperature exceeds the normal range, and obvious metal friction noise and abnormal noise occur during engine operation, with reduced operational stability.
Core Cause: Poor fuel return leads to insufficient lubrication inside the engine, increasing friction between key moving parts such as pistons and crankshafts, resulting in excessive heat and abnormal noise.
6. Idle Vibration or Unstable Operation
Phenomenon: When the engine is idling, the speed fluctuates significantly, accompanied by body resonance, and even a tendency to stall in severe cases.
Core Cause: Uneven fuel injection in individual cylinders, or abnormal ECM control signals (such as master/slave ECM communication failure), leading to unbalanced work of each cylinder.
🛠️ II. Systematic Solutions (Sorted by Troubleshooting Priority)
Step 1: Comprehensive Inspection of Low-Pressure Oil Circuit and Fuel Return Line
Operation Process:
- Check whether the fuel tank level is sufficient, test the fuel quality, and check for water and impurity contamination. If contamination exists, drain water or replace with qualified fuel in a timely manner.
- Test the hand pump pressure. If the hand pump has insufficient suction or abnormal pressure, replace the hand pump or clean the fuel-water separator filter element to ensure unobstructed oil circuit.
- Replace the suspiciously blocked fuel return line with a transparent pressure-resistant tube to intuitively observe the oil flow state, accurately locate the blockage point and clean it.
Required Tools: Pressure gauge, hand pump, transparent pressure-resistant tube, special wrench for fuel filter.
Step 2: Diagnosis and Repair of Fuel Injection System
Operation Process:
- Fuel Injector Detection: Perform a cylinder cut-off test through Cummins INSITE professional diagnostic software to detect the fuel injection uniformity, fuel injection volume and fuel return volume of each cylinder; disassemble and inspect the abnormal fuel injector, check the atomization quality and needle valve tightness, and remove carbon deposits in the nozzle holes.
- Fuel Injection Pump Calibration: Send the fuel injection pump to a professional test bench to calibrate the injection advance angle and injection pressure, ensuring that the pressure difference ≤ 100bar (in line with the technical standards of the QSK38 engine).
- Replacement Suggestion: For severely blocked, leaking or poorly atomized fuel injector nozzles, the original accessories should be replaced as a whole to avoid recurrence of faults due to accessory problems.
Step 3: Troubleshooting of Sensors and Electronic Control System
Fault Impact and Detection Methods of Key Components:
| Key Components | Fault Impact | Detection Methods |
| Air Flow Sensor | Incorrect air-fuel ratio calculation, leading to lean mixture and power loss | Read data flow through ECM, compare with standard parameters to judge whether the sensor is normal |
| Oxygen Sensor | Failure of exhaust gas oxygen content feedback, incorrect ECM fuel injection correction, leading to abnormal exhaust smoke | Detect the sensor voltage signal, which should normally fluctuate between 0.1–0.9V |
| Master/Slave ECM Communication | Interruption of fuel injection control signal, engine operation disorder and idle vibration | Check the CAN bus communication status with a professional diagnostic instrument to troubleshoot communication faults |
Processing Measures: Replace the failed sensor and reset the ECU parameters through INSITE software to ensure normal signal transmission of the electronic control system.
Step 4: Maintenance of Fuel Pressure Regulation and Fuel Return Valve
Operation Process:
- Disassemble the fuel pressure regulator, check the diaphragm tightness, and replace it in a timely manner if there is damage or leakage.
- Check the opening and closing flexibility of the fuel return valve. If it is stuck or fails to close tightly, clean or replace it to ensure that the fuel pressure is stable at 300–500kPa (refer to the Cummins QSK38 engine technical manual for specific parameters).
Step 5: Maintenance of Intake and Exhaust System and Combustion Chamber
Operation Process:
- Clean carbon deposits on valves and intake ducts, check the tightness of the intake pipe, detect leakage points by spraying carburetor cleaner, and repair air leakage parts in a timely manner.
- Measure the cylinder pressure of each cylinder to ensure that the pressure meets the standard; adjust the valve clearance to the cold engine standard value (0.38–0.43mm) to ensure smooth intake and exhaust.
💎 III. Preventive Maintenance Suggestions (Extend Engine Life and Reduce Fault Recurrence)
- Regular Maintenance: Strictly follow the maintenance cycle, replace the diesel filter every 500 hours, and clean the fuel injector and the entire fuel pipeline every 1000 hours to avoid carbon deposits and impurity accumulation.
- Fuel Management: Must use low-sulfur diesel that meets Cummins CES 20081 standard, and avoid using inferior fuel that causes colloid deposition and blocks the oil circuit and fuel injector.
- Electronic System Monitoring: Read fault codes and data flow through Cummins INSITE diagnostic software every month to early warn potential abnormalities of ECM, sensors and other components, achieving early detection and early treatment.
⚠️ Important Notes
If the fault persists and is accompanied by ECM communication alarm (such as fault code 228/229), the dual ECM cooperative work module must be inspected by professional maintenance personnel. It is strictly prohibited to disassemble the ECM by yourself to avoid program lock-up, component damage and higher maintenance costs.
Through the above systematic troubleshooting and standardized maintenance, the abnormal fuel return problem of the Cummins QSK38 engine can be fundamentally solved, and the engine overhaul cycle can be effectively extended and fuel economy can be improved. For complex electronic control faults, it is recommended to use Cummins original diagnostic tools for in-depth detection and processing to ensure maintenance quality.
QSK38 Spare Parts List
| Part Description | Part Number |
|---|---|

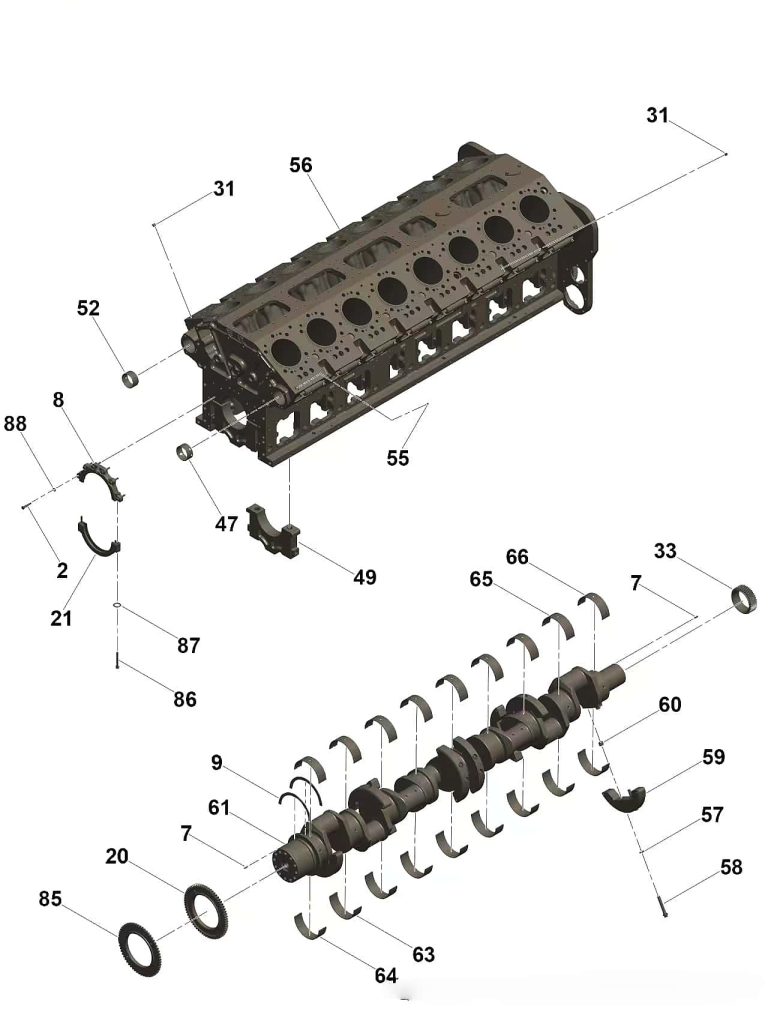

| Cylinder Block | 3648402 |
| Crankshaft | 3648630 |
| Cylinder Liner Assembly | 4955328 |
| Piston Assembly | 4955325 |
| Piston Ring | 4090028 |
| Crankshaft Bearing | AR12250 |
| Intake Valve | 2881836 |
| Exhaust Valve | 3803528 |
| Cylinder Head Gasket | 4334080 |
| Turbocharger | 4956143 |
| Thermostat | 3629205 |
| Upper Repair Gasket Kit | 5492345 |
| Oil Pump | 3634648 |
| Fuel Injector | 2882077 |
| Alternator | 4372403 |
| Fuel Pump | 4390376 |
| Lube Oil Pump | 3637969 |
| Starter Motor | 5541784 |
| Fuel Filter | 4328041 |
| Fuel Filter Element | 4328043 |
| Oil Filter | 4920071 |
| Water Filter | 3100308 |
| Electronic Control Module (ECM) | 4995445 |
| Pressure Sensor | 4964102 / 2864868 |
| Temperature Sensor | 4954905 / 3085185 |
