Introduction

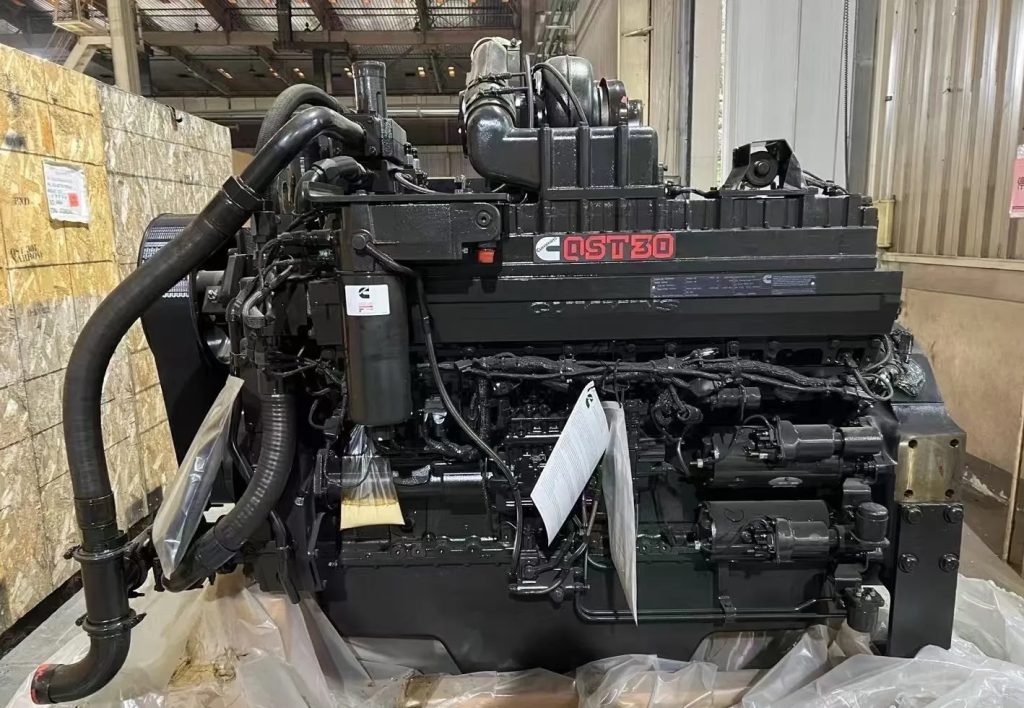

The Cummins QST30 is a heavy-duty V12 diesel engine specially engineered for extreme mining working conditions. Widely installed on mining trucks, bulldozers, and rotary drilling rigs, this 30L displacement engine delivers steady power output ranging from 800kW to 880kW. However, harsh mining environments including heavy dust, drastic temperature changes, continuous heavy loads, and complex vibration can severely shorten engine service life without standardized maintenance.
This blog summarizes practical maintenance rules, service cycles, common failure codes, and critical operation limits for the QST30 engine, helping mining fleets reduce downtime and lower overhaul costs.
1. Basic Technical Specifications of QST30 Engine
- Engine Structure: V-type 12-cylinder, 4-stroke, turbocharged & intercooled
- Displacement: 30 Liters
- Rated Power: 800kW – 880kW
- Rated Speed: 2100 RPM
- Max Torque Speed: 1400 – 1600 RPM
2. Harsh Mining Working Condition Characteristics
Mining equipment faces unique stress that standard road engines never encounter:
2.1 High Dust Air Intake
Mining dust particle size ranges from 0.5μm to 50μm, containing 30%-60% silicon dioxide. Fine dust easily wears cylinders, piston rings, and turbochargers.
2.2 Severe Thermal Load Fluctuation
Frequent switching between heavy-load climbing and long idle waiting causes continuous thermal cycling stress on the cylinder head, increasing fatigue cracks risk.
2.3 Complex Vibration Frequency
Bulldozers generate low-frequency strong vibration, while drilling rigs produce intermittent impact loads. Long-term vibration loosens bolts, damages seals, and causes oil leaks.
2.4 Limited Maintenance Time
Mining machines usually run more than 20 hours daily. Maintenance must follow combined working hours + actual working conditions instead of fixed simple cycles.
3. Customized Maintenance Schedule by Equipment Type
3.1 Mining Truck (Continuous Heavy Load)
3.1.1 Lubrication System Maintenance
Engine Oil Selection
- Normal environment: SAE 15W-40 (API CF-4 or higher)
- Cold area (-20℃): SAE 10W-30
- Extreme cold (-30℃): SAE 5W-20
Oil Change Interval
- Light load: 250 working hours
- Heavy load & climbing: 200 working hours
- High temperature & extreme load: 150-180 hours
Filter Replacement
LF670 full-flow oil filter must be replaced together with every oil change. Bypass filter requires replacement every 500 hours.
3.1.2 Air Intake System
Dual-stage air filter system (primary + safety filter)
- Part No.: AF25708M
- Primary filter: Replace when resistance indicator turns red or after 3-5 cleanings
- Safety filter: Must be renewed together with primary filter (never clean separately)
3.1.3 Cooling System
- Coolant freezing point must be 10℃ lower than local minimum temperature (-40℃ coolant recommended for northern mining areas)
- DCA concentration: 0.32-0.79 units per liter
- Water filter WF2075 replacement cycle: 250 hours
3.1.4 Fuel System
- Cetane number ≥ 40; Sulfur content ≤ 0.5%
- Fuel viscosity (40℃): 1.3-5.8 cSt
- FS1006 fuel filter replacement: Every 250 hours
- Drain water from water separator daily
3.1.5 Turbocharger Protection Rule
After heavy-duty operation, keep engine idling for 2-3 minutes until exhaust temperature drops below 350℃. Skipping this step will cause turbo carbon deposition and reduce turbo service life by over 50%.
3.2 Bulldozer (Low-Frequency Vibration & High Torque)
3.2.1 Valve & Injector Adjustment (Mandatory at 1500 Hours)
Cold adjustment: Engine shutdown over 4 hours, ambient temperature below 60℃ (for routine maintenance).
Hot adjustment: Oil temperature ≥ 99℃, run 10 minutes minimum (used after fault repair).
Standard clearance:
- Intake valve: 0.25 mm
- Exhaust valve: 0.50 mm
3.2.2 Engine Mounting Inspection
Check rubber mounts and bolt torque every 1500 hours. M12 bolt torque standard: 80-100 N·m. Misalignment over 0.2mm will cause crankshaft oil leakage and flywheel housing cracks.
3.2.3 Fuel Maintenance Optimization
Shorten coarse fuel filter cycle by 20%. Allow new diesel to settle more than 24 hours before refueling to reduce impurity intake.
3.3 Rotary Drilling Rig (Intermittent Heavy Load)
3.3.1 Idling Control Management
Long idle time causes carbon deposition, injector coking, and cylinder mirror polishing. It is recommended to shut down if idle time exceeds 10 minutes. Arrange at least 30 minutes of medium-high load operation every shift.
3.3.2 Starting System Regulations
- Single starting time ≤ 30 seconds
- Interval between two starts ≥ 2 minutes
- Stop starting after 3 continuous failures
- Oil pressure must reach standard value within 15 seconds after startup
3.3.3 Hydraulic Connection Inspection
Check coupling elasticity and coaxiality (deviation ≤ 0.1mm) every 1500 hours. Abnormal hydraulic temperature accelerates rear crankshaft seal aging.
4. Critical Assembly & Electrical Parameters
4.1 Mechanical Installation Standards
- Front crankshaft seal torque: 108 N·m (Special tool: 3163485)
- Cylinder liner protrusion: 0.03-0.10 mm
- Crankshaft axial play: 0.08-0.25 mm
4.2 Electrical System Data
- ECM power cable: ≥12AWG
- Total circuit resistance: ≤0.04Ω
- J1939 terminal resistance: 120Ω (±5%)
4.3 Common Fault Code Troubleshooting
- Code 434: Ignition circuit abnormal → Loose key switch wiring
- Code 122: Intake pressure sensor failure → Check wiring & sensor signal
- Code 253: Low oil pressure alarm → Verify pressure with mechanical gauge
Recommended Diagnostic Tool: Cummins INSITE Software (Part No. 3825145)
5. Three Non-Negotiable Operating Rules
5.1 Never Remove Thermostat
QST30 designed working temperature is 88-96℃. Removing thermostat keeps water temperature below 75℃, leading to fuel dilution and 200% higher cylinder wear rate. Every 10℃ temperature drop increases wear by approximately 40%.
5.2 Mandatory Idling Cooling After Heavy Load
After over 15 minutes of high-load operation (load rate＞70%), idle 2-3 minutes to cool turbocharger below 200℃ to prevent bearing coking.
5.3 No Operation With Active Fault Codes
Active codes: Stop machine immediately for inspection.
Inactive codes: Analyze records and arrange planned maintenance.
6. Frequently Used Genuine Parts List
| Description | Part Number |
|---|---|
| Oil Filter | LF670 |
| Fuel Fine Filter | FS1006 |
| Water Separator | FS19732 |
| Air Filter | AF25708M |
| Water Filter | WF2075 |
| Front Crankshaft Seal | 3803994 |
| Rear Crankshaft Seal | 3803995 |
7. Conclusion
The Cummins QST30 heavy-duty engine requires strict condition-based maintenance instead of simple fixed-cycle service. Reasonable oil selection, standardized post-load cooling, regular filter replacement, and compliance with assembly torque standards can greatly extend engine service life and reduce mining fleet operating costs.
