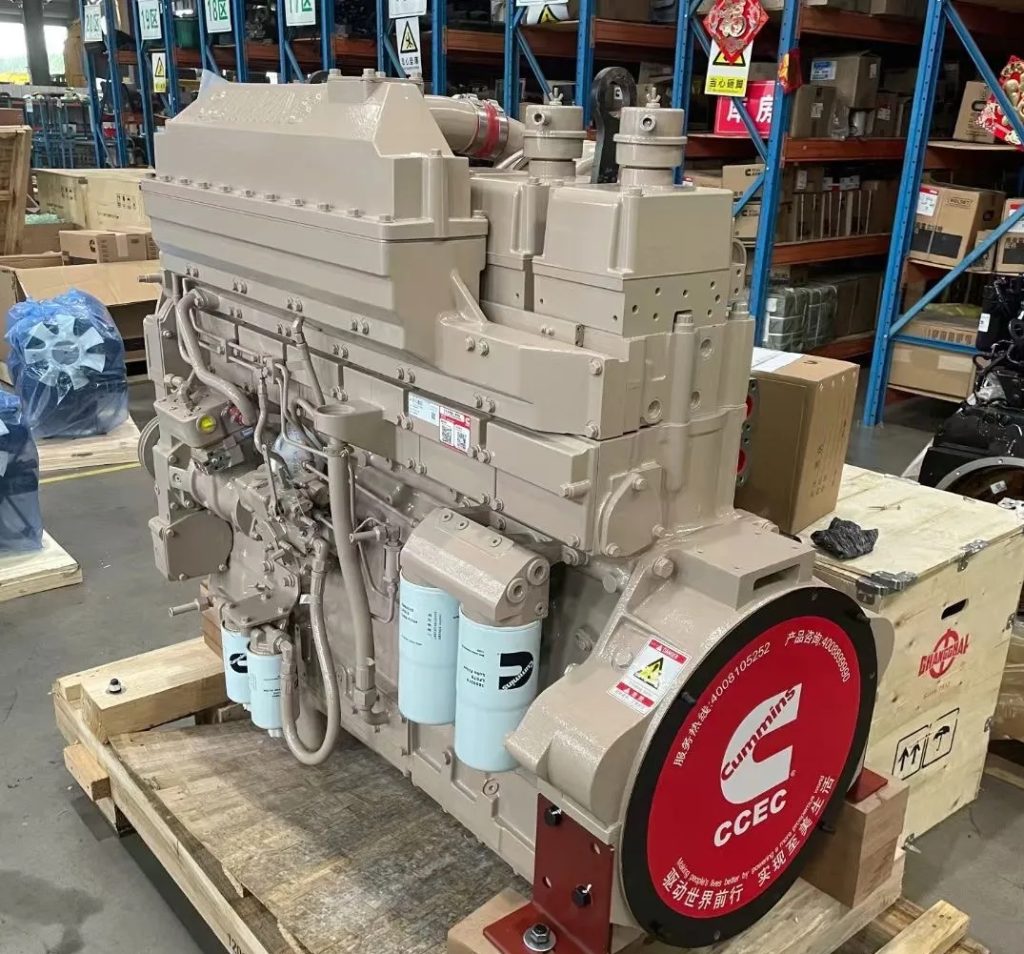

There is a well-known saying in the construction machinery industry: Cummins K19 overhaul never relies on feelings or approximate operations. This heavy-duty diesel engine requires extremely high assembly precision. Tiny assembly errors will directly shorten the engine service life and cause faults such as oil leakage, oil blow-by, and insufficient power.
Here are two practical pain points for your reference: A crankshaft clearance deviation of 0.01mm will reduce the engine service life by 30,000 hours; a cylinder liner protrusion exceeding 0.05mm will cause hydraulic oil ejection and leakage. This article sorts out the practical experience of a 25-year senior maintenance mechanic, concluding the most practical micron-level assembly standards and complete torque parameters. It is suitable for collection and reference by maintenance personnel with pure dry knowledge.
1. Piston Pin Assembly Specifications (Zero-damage Installation Skills)
Violent pressing is strictly prohibited during piston pin assembly, as it will easily scratch the piston pin hole and cause permanent damage. The standard assembly process is as follows:
- Install a single snap ring in the piston pin snap ring groove for fixation;
- Evenly lubricate the piston pin and connecting rod small end bushing with clean engine oil;
- Push the piston pin in slowly and smoothly without knocking or squeezing by external force;
- Install the other snap ring and confirm it is fully clamped into the groove without looseness.
2. Cylinder Liner Assembly Process & Precision Testing Standards
As the core component of engine sealing and compression, every step of cleaning, sealing, installation and detection of the cylinder liner cannot be simplified. It is also the most fault-prone link during overhaul.
2.1 Pre-treatment: Cleaning & Sealant Processing
- Component Cleaning: Use hydrocarbon cleaning agent to thoroughly clean the bottom of the cylinder liner flange and cylinder block seat hole to remove iron filings, oil stains and impurities, ensuring a clean fitting surface and avoiding poor sealing.
- Drying Requirements: The cylinder liner flange must be completely dry. Residual oil stains will hinder the curing of sealant and reduce sealing performance; gaskets can be added to strengthen sealing if natural drying fails.
- Seal Ring Installation Taboo: Wedge seal rings and O-rings are forbidden to be lubricated, because lubricating oil will cause seal ring displacement and sealing failure; only lubricate the matching holes of the cylinder block. Fixed installation sequence: Wedge seal ring → Black O-ring → Red O-ring.
- Sealant Application Specifications: Evenly apply a thin layer of sealant on the bottom of the seat hole grommet. Strictly control the construction time: Complete cylinder liner assembly within 10 minutes after glue application. Moderate glue dosage is required, as excessive sealant will penetrate into the engine and cause malfunctions.
2.2 Cylinder Liner Installation Operation
- Preliminary Fixation: Special installation tools are mandatory. Install the bridge support and fixing bolts with a pre-tightening torque of 45Nm.
- Precision Press-fitting: Align the cylinder liner with a pusher and press it slowly by rotating the bolt. The torque shall not exceed 65Nm during the whole process until the bottom surface of the cylinder liner flange is completely fitted with the seat hole shoulder without gaps.
2.3 Post-installation Testing Standards (Micron-level Control)
- Inner Diameter Detection: Standard cylinder liner inner diameter range: 158.737~158.877mm; New cylinder liners have an inherent oil film on the surface, and an inner diameter deviation of 0.005~0.015mm is a normal process error without adjustment.
- Protrusion Detection: Measure with gauge blocks and dial indicators. Standard protrusion: 0.13~0.18mm. Disassemble and clean burrs and impurities if the protrusion exceeds the standard; add or replace gaskets for adjustment if the protrusion is insufficient to ensure fitting precision.
3. Crankshaft Assembly Tutorial & Bolt Torque Parameters
3.1 Main Bearing Bushing Installation Points
- Bushing Classification: There are two types of main bearing bushes (wide and narrow). Narrow bushes are installed on No.1 and No.7 bearing seats, and wide bushes are used for other positions; upper bushes have oil holes while lower ones have none. Reverse installation is prohibited.
- Installation Requirements: Do not lubricate the back of bearing bushes. Wipe the installation surface clean, align the positioning tongues of bushes with cylinder block grooves, and ensure flat end faces without offset.
3.2 Crankshaft Lifting & Positioning
Thoroughly wipe the crankshaft journal before lifting. Use special flexible lifting belts to avoid hard collision and journal damage; fixed installation direction: The end with the smallest crankshaft diameter faces the front end of the cylinder block.
3.3 Thrust Washer Assembly Specifications
The No.6 main bearing is a key assembly position. The grooves of both upper and lower thrust washers must face the crankshaft; lubricate the upper thrust washer with special lubricant. Slightly move the crankshaft to assist alignment during lower thrust washer installation. The positioning pin shall not protrude above the thrust washer surface.
3.4 Main Bearing Cap Installation & Torque Procedure
- Only lubricate the fitting surface of the lower bearing bush and keep the back dry; apply engine oil to bolts, gaskets and bolt heads, and remove excess oil before manual pre-tightening.
- Impact wrenches are forbidden to prevent bearing bush displacement; fasten bolts evenly with two wrenches simultaneously.
- Main Bearing Cap Bolt Tightening Sequence & Torque: 265Nm → 605Nm → Complete Loosening → 265Nm → 605Nm.
- Rotate the crankshaft manually after tightening. If it is stuck, disassemble bearing caps one by one to find misaligned components and ensure flexible rotation without resistance.
4. Complete Piston Assembly Technology
4.1 Piston Ring Installation Standards
- The side with the part number of the piston ring shall face the piston top, and the ring opening shall avoid the piston pin hole;
- Stagger the opening of the oil ring expander and the oil ring by 180°, and arrange all piston ring openings at an interval of 60° to prevent gas blow-by.
4.2 Connecting Rod Bearing Bushing Installation
Wipe connecting rods and bearing bushes with lint-free cloths. Keep the bush back dry and only lubricate the working surface; align positioning tongues and grooves, and apply engine oil to bolt threads, flanges and gaskets for standby.
4.3 Piston Lifting & Torque Specifications
- Lubricate the cylinder liner inner wall and piston assembly with clean engine oil, and drain excess oil naturally;
- Fix the piston with a piston ring compressor. Keep the numbers of connecting rods and rod caps consistent, and the side with cylinder marks faces the camshaft;
- Rotate the crankshaft to move the connecting rod journal to the bottom dead center, install the piston assembly smoothly, and fasten bolts alternately and evenly.
- Connecting Rod Bolt Tightening Procedure: 102Nm → 203Nm → 339Nm → Loosening → 102Nm → 203Nm → 339Nm.
- Lateral Clearance Standard: The lateral clearance between connecting rod and crankshaft shall be ≥ 0.20mm, and the connecting rod shall swing left and right flexibly.
5. Flywheel Housing & Gear Chamber Assembly Details
5.1 Flywheel Housing Assembly
Embed the seal ring into the flywheel housing groove, attach bolt oil seals to the cylinder block side, and align positioning pins accurately; fasten bolts in two steps: initial torque 100Nm, secondary tightening to 205Nm.
5.2 Crankshaft Oil Seal Installation
Lubricate the oil seal O-ring before installation; keep the crankshaft sealing surface and oil seal lip dry without lubrication; install flat gaskets with a bolt tightening torque of 11Nm.
5.3 Front Gear Chamber Liner Plate
Lay gaskets without adhesive; only apply a small amount of sealant at gasket joints. The height difference between the liner plate and cylinder block bottom shall be ≤ 0.05mm, with a bolt tightening torque of 45Nm.
5.4 Idler Gear Assembly
The marked side of the camshaft idler gear faces outward, and the thrust washer groove faces the gear; lubricate gears, shafts and thrust washers, and align the “0” timing marks of crankshaft gear and idler gear. Bolt torque: 150Nm; standard axial clearance: 0.10~0.36mm.
5.5 Camshaft Assembly
Lubricate the camshaft and bushing, push it in slowly and align the “X” timing marks on gears; trim gaskets if necessary to avoid fitting interference. Lock piece bolt torque: 64Nm; minimum camshaft axial clearance ≥ 0.15mm.
6. Auxiliary Component Installation Specifications
- Oil Pump: Install O-rings and seal rings, lubricate mounting holes, bolt tightening torque 45Nm.
- Water Pump Drive Gear: Direct fixed assembly, standard torque 45Nm.
- Oil Pan Connector: Place adhesive rectangular oil seals correctly, fasten four corner bolts first then the middle bolts; oil suction pipe bolt torque 60Nm, bracket bolt torque 35Nm. Do not pry the oil suction pipe for forced alignment.
- Oil Pan: Install strictly in accordance with the original factory maintenance manual.
7. Cylinder Head Assembly & Precision Installation
7.1 Cylinder Head Bolt Tightening Procedure
Fit the cylinder gasket onto positioning pins smoothly with the “TOP” mark upward; install water seal gaskets and various sealing rings in sequence; drain excess oil after bolt lubrication, and tighten in stages: 68Nm→203Nm→295Nm→ Final 90° Rotation.
7.2 Torque Parameters of Key Components
- Cam Follower: Special bolt with a tightening torque of 165Nm. Ordinary bolts are forbidden for replacement;
- Front Crankshaft Oil Seal: Keep dry without lubrication, front support bolt torque 195Nm;
- Fuel Injector: Install lubricated O-rings, pressure plate bolt torque 54Nm. The plunger must move freely after installation;
- Rocker Chamber: Lubricate O-rings at both ends of the water delivery pipe, fixing bolt torque 95Nm;
- Rocker Arm Assembly: Align ball joints, main bolt tightening torque 225Nm.
8. Precise Adjustment of Valves & Fuel Injectors
Rotate the crankshaft before adjustment to align the marks on the pulley and gear chamber cover accurately. Adjust strictly according to marks A/B/C without disorder:
- Mark A: First appearance → Adjust No.5 Valve & No.4 Fuel Injector; Second appearance → Adjust No.2 Valve & No.3 Fuel Injector;
- Mark B: First appearance → Adjust No.3 Valve & No.1 Fuel Injector; Second appearance → Adjust No.4 Valve & No.6 Fuel Injector;
- Mark C: First appearance → Adjust No.6 Valve & No.5 Fuel Injector; Second appearance → Adjust No.1 Valve & No.2 Fuel Injector.
9. Conclusion
As a widely used heavy-duty engineering engine, the core of Cummins K19 overhaul lies in micron-level precision control and standard torque execution rather than assembly speed. Most common overhaul sequelae such as oil leakage, abnormal noise, power attenuation and shortened service life are caused by assembly errors, non-standard torque and improper sealing operation.
This article summarizes all practical data, forbidden operation points and torque parameters. It is suitable for collection by repairmen and construction machinery owners. Strict construction in accordance with this procedure can greatly reduce the engine rework rate and extend equipment service life.
