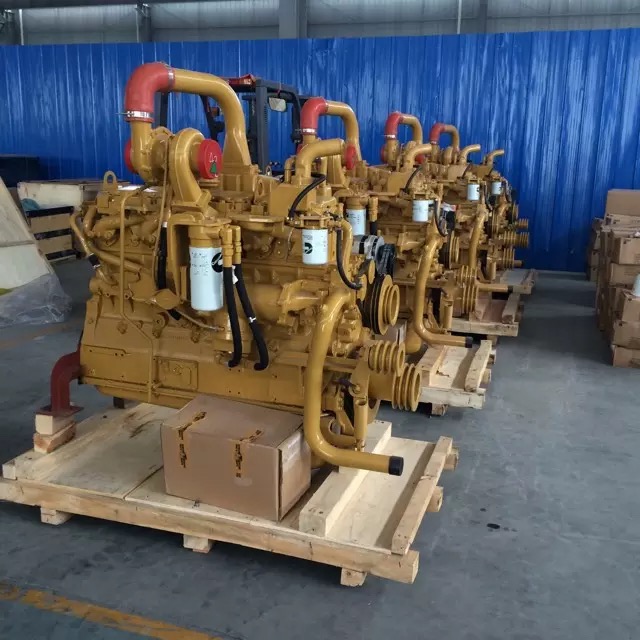

In the global heavy-duty machinery, generator set and engineering power industry, the Cummins NT855 diesel engine has gained worldwide recognition for its outstanding performance, stable operation and ultra-high reliability. Every smooth rotation and powerful power output of this classic engine is inseparable from rigorous, standardized and refined assembly procedures.
Today we will take you through the full professional assembly workflow of Cummins NT855 engine, sort out core assembly standards, precise torque data, clearance control specifications and operational taboos, fully present the professional assembly philosophy behind high-quality power engines, suitable for overseas maintenance technicians, mechanical repair practitioners, equipment operators and engine assembly enthusiasts to learn and refer to.
1. Cylinder Block Assembly: Build a Solid Engine Foundation
The cylinder block is the main frame of the entire engine, and its assembly cleanliness and sealing performance directly determine the overall operating stability and service life of the engine.
Pre-assembly Inspection
Thoroughly clean all internal oil passages and water passages of the cylinder block to remove iron scraps, oil dirt and sundries, ensure smooth fluid circulation. Inspect all block plugs and mounting holes to confirm complete installation without missing parts or deformation defects.
Standard Torque for Block Plugs
Different specification pipe plugs must be tightened in accordance with unified torque standards to effectively prevent oil leakage and water seepage:
| Plug Size | Torque (ft-lb) | Torque (N·m) |
|---|---|---|
| 1/8 | 10-13 | 13.5-20 |
| 3/8 | 20-25 | 27-34 |
| 1/2 | 35-40 | 47-54 |
| 3/4 | 50-55 | 68-74.5 |
| 7/8 | 60-70 | 81-95 |
Sealing Installation Rules
Do not use Teflon tape on main oil passage and auxiliary oil passage plugs, only apply special sealant for sealing. When installing bowl-shaped plugs, apply thick special thread sealant to enhance sealing effect under high pressure working conditions.
2. Crankshaft & Main Bearing Assembly: Core Power Connection Installation
Crankshaft and main bearings are the core power transmission components of the engine, with extremely strict assembly precision requirements, no errors are allowed in the whole process.
Preparation Work Before Installation
Wipe the main bearing holes, bearing caps and fixing bolts completely clean with soft lint-free cloth, keep all mounting surfaces dry and dust-free.
NT series engine main bearings are designed differently: upper main bearing is equipped with oil grooves and oil holes for lubrication, while lower bearing has no oil holes. All main bearings are divided into three types, which cannot be mixed and installed randomly. Each bearing is equipped with positioning groove, which must be closely fitted with the positioning sleeve on the cylinder block.
Important Rule: Never daub any lubricating grease on the back of main bearings.
Step-by-Step Installation Process
- Evenly apply clean engine oil on the surface of upper bearing, install positioning ring for the 7th main bearing;
- Install thrust washer, keep the grooved side facing the crankshaft correctly;
- Coat crankshaft journal and lower bearing with clean lubricating oil, align and install lower bearing accurately;
- Place main bearing caps in correct positions, match the numbers on caps and cylinder block strictly;
- Apply engine oil on bolt heads and threads, screw bolts manually for 2-3 circles, tap bearing caps gently with rubber hammer to ensure tight fitting.
Tightening Sequence & Axial Clearance Standard
Five-step Bolt Tightening Method
- First pre-tighten to 85 ft-lb (115 N·m)
- Further tighten to 250-260 ft-lb (339-352.5 N·m)
- Loosen all bolts completely to release assembly stress
- Pre-tighten again to 85 ft-lb (115 N·m)
- Final tighten to 250-260 ft-lb (339-352.5 N·m)
Crankshaft Axial Clearance
- New crankshaft & new thrust washer: 0.007-0.018 inch (0.18-0.48 mm)
- Used crankshaft maximum allowable clearance: ≤0.022 inch (0.56 mm)
Note: The thrust washer of NT855 engine is installed at the 7th position of cylinder block, upper bearings with oil holes are non-interchangeable parts.
3. Cylinder Liner Assembly: Ensure Sealing & Operational Stability
Cylinder liner is the running cavity for piston movement, its assembly quality affects cylinder tightness, heat dissipation effect and anti-scuffing performance directly.
Pre-installation Check
Polish sharp edges of cylinder liner mounting holes to avoid scratching sealing rings. Keep block stop surface and cylinder liner flange surface clean without oil stains and scratches.
Sealing Ring Installation Standard
Install sealing rings in fixed order: install rectangular sealing ring in upper groove, black O-ring in middle groove, red O-ring in bottom groove, and keep the side angle of rectangular ring toward the bottom of cylinder liner.
Time limit rule: Only coat lubricating oil on O-rings right before installation, finish assembly within 15 minutes to prevent ring expansion and failure. After applying sealant on joint surfaces, install cylinder liner within 5 minutes, avoid excessive sealant blocking cooling passages.
Dimensional Precision Detection
- Cylinder liner protrusion height standard: 0.003-0.006 inch (0.08-0.15 mm)
- Inner circle roundness requirement: Within 1 inch from piston top dead center, roundness error ≤0.003 inch; sealing ring installation area roundness error ≤0.002 inch.
4. Piston & Connecting Rod Assembly: Power Transmission Core Installation
The combined assembly of piston and connecting rod realizes the conversion of combustion power into mechanical power, which is one of the key procedures affecting engine power performance.
Piston Ring Installation Specification
Install piston rings with marked TOP side toward piston top, install oil scraper ring first. Expand rings moderately during installation to avoid permanent deformation.
Stagger ring openings reasonably: all ring openings must not align with piston pin axis; combined oil scraper ring opening stagger 180°, all piston rings stagger 120° mutually.
Hot Assembly of Piston and Connecting Rod
Adopt professional hot assembly technology instead of hammer knocking installation:
- Heat piston in oven at 210℃ for 15 minutes for thermal expansion;
- Assemble piston pin quickly before piston temperature drops to 70℃;
- Install snap rings tightly into pin holes after assembly, ensure firm installation without falling off.
Structural difference: NT855 N-series engine is equipped with 4 piston rings (3 compression rings + 1 oil ring); K-series high-power engine adopts 3 piston rings, and has fixed assembly direction marks.
Integral Installation & Connecting Rod Bolt Torque
Align connecting rod bearing oil holes accurately, coat sufficient clean engine oil on all friction surfaces. Turn crankshaft to bottom dead center, use piston ring clamp to send piston assembly into cylinder liner slowly, protect crankshaft journal from damage.
Connecting Rod Bolt Tightening Steps
- Pre-tighten: 70-75 in-lb (95-102 N·m)
- Secondary tightening: 140-150 in-lb (190-203 N·m)
- Loosen bolts to release tension
- Repeat pre-tightening and final tighteningStandard connecting rod side clearance: 0.0045-0.013 inch (0.114-0.33 mm)
5. Camshaft Assembly: Accurate Valve Timing Control
Camshaft controls the opening and closing timing of intake and exhaust valves, which determines engine air intake efficiency and fuel combustion efficiency.
Inspection & Installation Steps
Check camshaft bushing and camshaft body for wear, scratch and damage before installation. Match exclusive eccentric key according to engine power configuration.
Coat lubricating oil on thrust piece, install it with oil groove side toward camshaft gear. Lubricate camshaft journals and bushings fully, push camshaft into cylinder block slowly with guide tools.
Align the “0” scale mark on camshaft gear and crankshaft gear strictly to complete basic valve timing calibration.
Gear Side Clearance Standard
New gear assembly clearance: 0.004-0.016 inch (0.10-0.40 mm)
Maximum allowable clearance of used gears: ≤0.020 inch (0.51 mm)
Adjustment difference: N-series engine adjusts thrust clearance by gaskets; K-series camshaft clearance is preset in factory without secondary adjustment.
6. Auxiliary Parts Assembly: Control Details to Avoid Common Faults
Gear Cover Assembly
Fix with 24 fixing bolts, standard torque: 45-55 ft-lb (61-74 N·m). Keep flatness error within ±0.004 inch, adjust camshaft matching clearance to 0.006-0.013 inch after installation.
Rear Crankshaft Oil Seal Assembly
Do not apply any lubricant on oil seal surface, fix with 8 bolts, tightening torque: 30-35 ft-lb (40.6-47 N·m), keep mounting surface flat.
Oil Pan Installation
Equipped with 36 bolts of different specifications, unified tightening torque: 35-40 ft-lb (47-54 N·m), install gaskets correctly to prevent engine oil leakage.
Water Pump & Oil Pump Assembly
Water pump fixed by 6 bolts (2 long + 4 short), torque: 30-35 ft-lb; oil pump fixed by 5 bolts of different lengths, torque range: 35-45 ft-lb, coat engine oil on oil pump O-ring before installation.
Accessory Drive Gear Installation
Align timing marks correctly, fastening bolt torque: 40-45 ft-lb (54-81 N·m).
7. Cylinder Head, Vibration Damper & Power Accessory Installation
Fuel Injection Pump & Air Compressor Matching
Calibrate PT fuel pump on professional test bench in advance. Stagger air intake time of air compressor and engine to avoid air intake conflict, adjust gear marks to optimal positions for stable operation.
Vibration Damper Installation
Check silicone oil leakage by heating damper to 75℃ before installation. Fasten 7/8 specification bolts in cross order, standard torque: 175-205 ft-lb (190-217 N·m) to reduce engine vibration effectively.
Cylinder Head Standard Installation
Carry out air tightness test for intake and exhaust valves under 1.5kg pressure. Coat engine oil on cylinder head bolts, adopt three-stage tightening method:
- Pre-tighten: 20-25 ft-lb (27-34 N·m)
- Medium tightening: 80-100 ft-lb (108-136 N·m)
- Final tightening: 265-305 ft-lb (359-413.5 N·m)
Structure difference: N-series NT855 engine adopts two-cylinder one-head design; K-series engine is one-cylinder one-head structure.
8. Fuel Injection Timing Precise Adjustment
The timing adjustment method is applicable to Cummins N, K, KV12, M11 series engines universally.
Install dial indicator bracket on cylinder head, set piston indicator pre-pressure 9mm, cam indicator pre-pressure 5mm. Rotate crankshaft repeatedly to calibrate zero position, eliminate gear gap, confirm standard 5.16mm calibration position to complete timing setting.
Adjustment mode difference: N-series engine adjusts fuel injection advance angle by increasing or decreasing gaskets; K-series series adjusts timing by replacing different eccentric keys.
Conclusion
The excellent comprehensive performance of Cummins NT855 classic engine comes from strict implementation of every assembly process and precise control of all data parameters. Standardized assembly operation can not only maximize engine power output and fuel economy, but also greatly reduce failure rate, extend overhaul cycle and create higher economic benefits for engineering equipment, generator sets and supporting machinery.
Strictly follow the original factory assembly specifications and maintenance standards is the core way to maintain long-term stable operation of Cummins NT855 engine.
