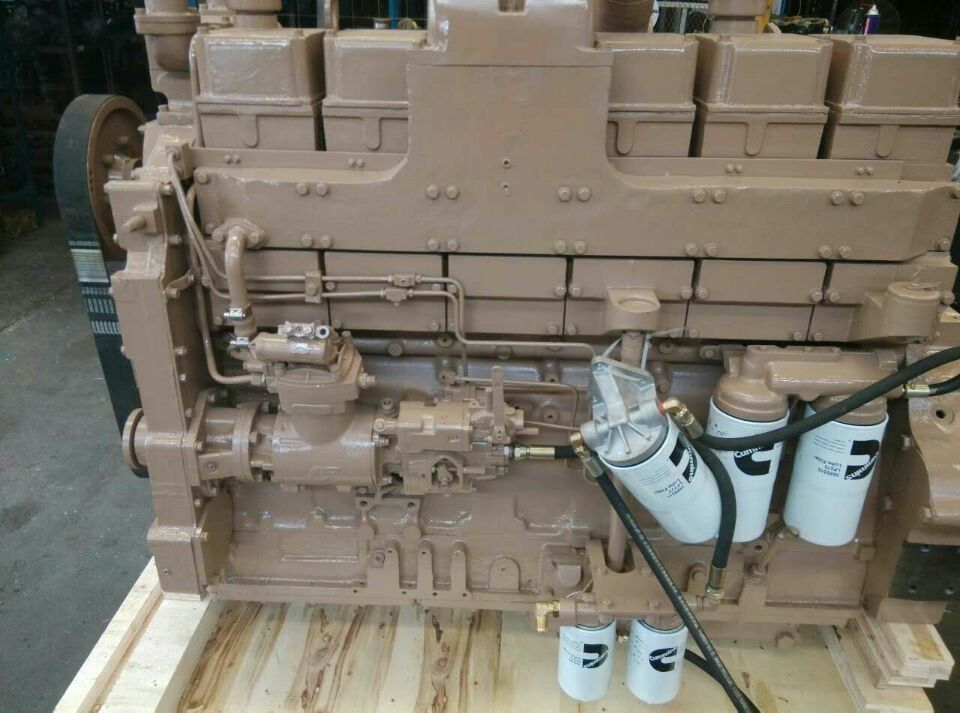

For Cummins KTA19 series heavy-duty diesel engines, accurate calibration of injector plunger lift and valve lash is a core maintenance procedure. Deviated parameters will directly lead to insufficient power, abnormal exhaust smoke, rough idling, high fuel consumption, abnormal valve noise and other faults, and even cause premature wear and damage to valves, injectors, pistons and other key components.
Different from simple adjustment methods for ordinary engines, the KTA19 engine adopts factory-standard adjustment rules including mark alignment, cylinder-by-cylinder calibration and separate adjustment of injectors and valves. It is impossible to adjust the injector and valves of the same cylinder simultaneously. Operators shall calibrate injector lift and fine-tune valve lash step by step according to pulley scale marks. Combined with original factory maintenance specifications, this article sorts out complete standard operation procedures, special tool usage, accurate technical data and torque standards, helping maintenance personnel finish adjustment correctly and avoid operating errors.
1. Pre-adjustment Notes & Basic Parameters
1.1 Engine Firing Order
Standard firing sequence of KTA19 engine: 1-5-3-6-2-4
1.2 Core Adjustment Rule
Due to engine structure and valve timing design, injector adjustment and valve clearance adjustment cannot be carried out on the same cylinder at the same time. When both rockers of one cylinder are loose and its valves are fully closed, you can adjust the injector lift of the matched cylinder first, then adjust the valve lash of this idle cylinder in sequence.
1.3 Standard Technical Specifications
- Standard injector plunger lift: 7.72±0.03mm
- Standard intake valve lash: 0.36mm
- Standard exhaust valve lash: 0.69mm (Exhaust valves are all installed on the front side of each cylinder head)
- Ensure valve crossheads are installed in place and move flexibly without deviation or jamming before valve adjustment.
1.4 Necessary Special Tools
Dial indicator with bracket, 3375004 dedicated injector lift adjusting tool, rocker arm prying tool, 3/4 inch socket, ST-669 torque wrench adapter, precision feeler gauge, flat screwdriver
2. Crankshaft Rotation & Cylinder Adjustment Correspondence Table
Rotate the crankshaft in the normal operating direction, align scale marks A/B/C on the accessory drive pulley with the reference mark on the gear housing cover, and adjust corresponding cylinders as follows:
| Pulley Alignment Mark | Cylinder for Injector Adjustment | Cylinder for Valve Adjustment |
|---|---|---|
| Mark A (Starting position) | Cylinder 3 | Cylinder 5 |
| Mark B | Cylinder 6 | Cylinder 3 |
| Mark C | Cylinder 2 | Cylinder 6 |
| Mark A | Cylinder 4 | Cylinder 2 |
| Mark B | Cylinder 1 | Cylinder 4 |
| Mark C | Cylinder 5 | Cylinder 1 |
Judgment Tip: After aligning the marks, shake the cylinder rockers gently. If both rockers move freely, it means all valves of this cylinder are fully closed, ready for valve clearance adjustment.
3. Standard Adjustment Steps for Injector Plunger Lift
Take cylinder 4 adjustment under mark A alignment as an example, the operation method applies to all cylinders.
- Install and calibrate measuring toolsFix the dial indicator bracket firmly, place the extended measuring rod vertically on the top surface of the injector spring retainer. Make sure the rod is tightly assembled without touching the injector rocker arm to avoid inaccurate reading.
- Remove residual oil film inside injector cupUse rocker arm prying tool matched with 3/4 inch socket to press down the injector plunger until it fully seats at the bottom of the injector cup, so as to squeeze out residual oil film and eliminate measurement error caused by oil pressure.
- Zero the dial indicatorRelease the tool to let the plunger rebound naturally, then press it to the bottom again. Set the dial indicator reading to zero when the plunger is completely seated, and recheck the contact state of the measuring rod.
- Calibrate to standard lift valueTurn the injector rocker adjusting screw slowly and observe the dial indicator reading steadily until the value reaches 7.72±0.03mm. Do not rotate the screw rapidly to prevent over-adjustment.
- Secondary verificationPress the plunger to the bottom again and check the indicator reading to confirm the lift value is within the qualified tolerance range without reading drift or mechanical jamming.
- Lock lock nut with specified torque
- Tightening torque with ST-669 torque wrench adapter: 41-47 N·m
- Tightening torque without adapter (fix adjusting screw with screwdriver): 54-61 N·mHold the adjusting screw steadily during tightening to prevent position offset and parameter change.
- Final inspectionPush the injector plunger back and forth several times to check its rebound flexibility and stroke stability, confirm no parameter deviation, abnormal noise or stuck failure.
4. Standard Valve Lash Adjustment Procedures
- Pre-inspection workConfirm all valve crossheads are correctly assembled with uniform clearance and flexible movement, free from wear, deviation and blocking. This is the premise of accurate valve adjustment.
- Measure clearance with feeler gaugeInsert matched feeler gauge between rocker arm and valve crosshead: use 0.36mm gauge for intake valves and 0.69mm gauge for exhaust valves.
- Fine adjust to standard clearanceScrew down the valve adjusting screw slowly until the rocker arm closely contacts the feeler gauge. The standard state is slight damping resistance when pulling the gauge without loose clearance or excessive tightness.
- Fasten lock nut with torqueKeep the adjusting screw fixed, then tighten the valve lock nut following the same torque standard as injector lock nuts to avoid clearance variation caused by different tightness.
- Recheck clearance dataPull out the feeler gauge repeatedly to verify the adjusted clearance meets factory requirements, then finish single-cylinder valve adjustment.
5. Full-cycle Complete Adjustment Steps
- After finishing adjustment under one scale mark, continue rotating the engine crankshaft in normal direction.
- Align pulley marks B, C, A, B, C with the reference line in sequence, and repeat injector lift and valve lash adjustment for corresponding cylinders according to the comparison table.
- Complete calibration work for all six cylinders one by one.
- Carry out overall inspection on all adjusted parameters and fastening torque, tidy up maintenance tools and confirm no parts are left behind with all data within standard range.
6. Common Adjustment Errors & Maintenance Taboos
- Do not rotate the crankshaft and align marks randomly, which will disorder valve timing and fuel injection timing.
- Never adjust injector and valves of the same cylinder at the same time, which will easily cause various engine failures.
- Fully remove oil film inside injector cup before zeroing the dial indicator to avoid lift measurement error.
- Fix the adjusting screw firmly before tightening lock nuts; forced twisting will lead to parameter offset and invalid adjustment.
- Do not mix up intake and exhaust valve clearance values; all exhaust valves are arranged uniformly to avoid wrong operation.
Conclusion
The key points of Cummins KTA19 engine injector and valve adjustment are accurate mark alignment, qualified technical parameters, standard fastening torque and reasonable step arrangement. Strictly follow original factory marking rules, 7.72mm standard injector lift and specified valve lash values can effectively eliminate various faults caused by abnormal valve timing and fuel injection state. It can restore optimal engine power performance and fuel economy, and greatly extend engine overhaul cycle, which is an essential standardized maintenance operation for daily upkeep and fault repair of KTA19 engines.
